AP4C-VB

Chemical & Biological Detection System

Excellence in CBRN threat management

The AP4C-VB is a unique, ready-to-mount system for vehicles, shelters, and critical infrastructure, designed to provide early warning of combined chemical and biological threats. Its compact and rugged design enables continuous monitoring of airborne agents in the environment, ensuring fast and reliable detection.

Thanks to its advanced core detection technology, the AP4C-VB is ideal for use either as an independent detector for infrastructure protection or as an integrated solution within vehicles and combat systems. Its machine learning based alarm algorithm enables real-time adaptation to complex variations in both outdoor and indoor environments, ensuring a fast and low-regret response. The system features an open communication protocol, allowing seamless integration into any CBRN defense architecture.


Key features

  • Quick start-up and response time
  • No library / no filters
  • Liquid, gas, dust detection
  • Continuous & simultaneous detection
  • External & airtight sampling
  • Flexible and easy integration
  • Combined chem-bio detection
  • 2 in 1 design (single sensor)
  • Operates under harsh conditions (dust, humidity, temperature)
  • 24/7 continuous detection

Application

  • CBRN vehicles
  • Reconnaissance vehicles
  • Light, APC or MBT class
  • Land and naval platforms
  • Static or mobile applications
  • Monitoring of strategic sites

Detection

  • All nerve agents
  • All blister agents
  • All blood agents
  • All NTA such as Novickok
  • Choking agents
  • Numerous toxic industrials
  • PBA such as fentanyl
  • Virus
  • Bacteria
  • Spore

Content

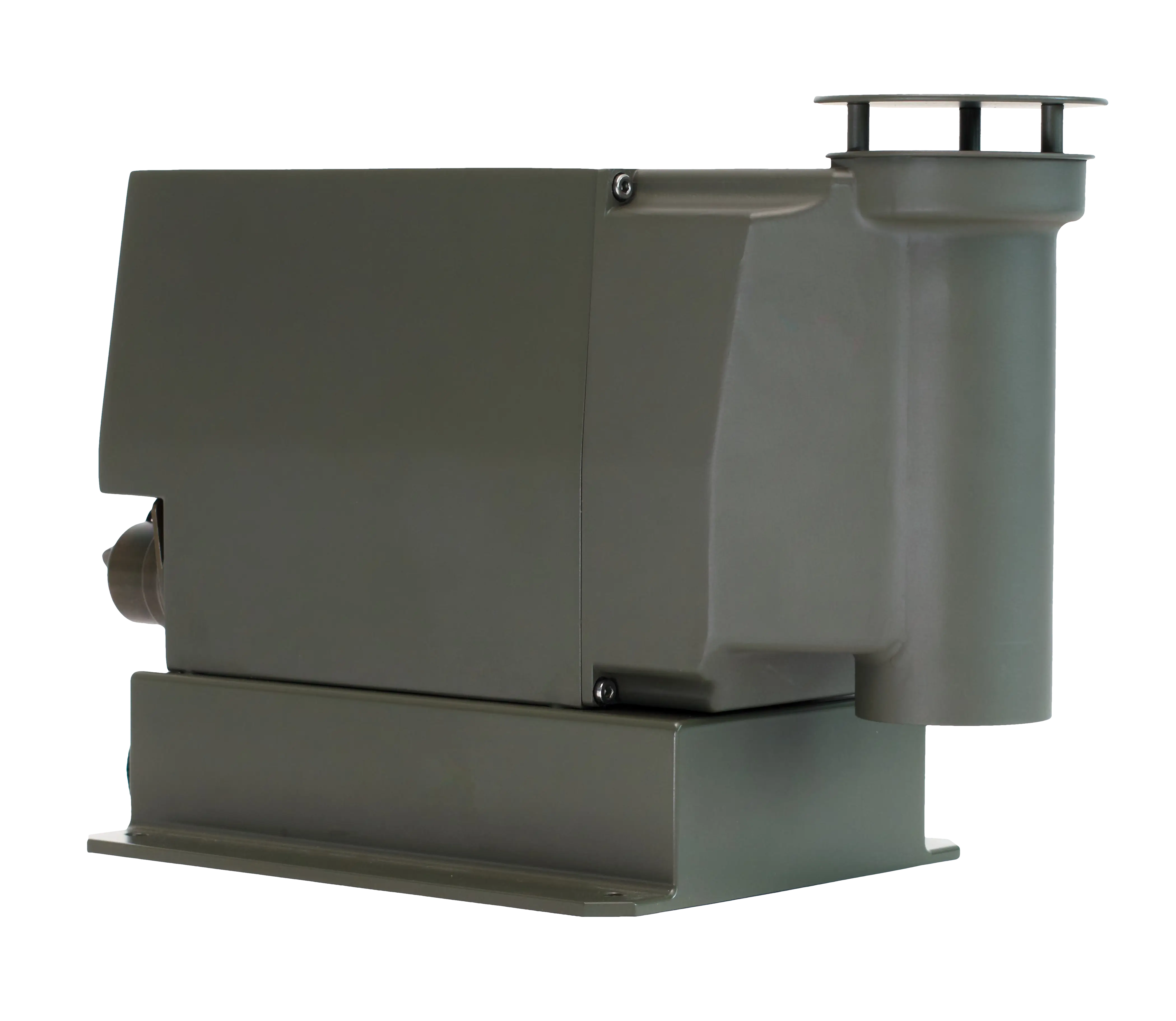

  • The AP4C-VB is a fixed, compact, and rugged system designed for the detection of airborne chemical and biological threats. It can be installed on vehicles, shelters, or fixed infrastructure, and is suitable for both indoor and outdoor environments.

Kit options

  • AP4C-VB should be used with visualization box / customer software.

Accessories & services

  • Minibench (M2417 E00 000): refill station for hydrogen cylinders
  • Prepaid maintenance and extended warranty options available upon initial acquisition
  • For training, technical support or maintenance, contact us at contact@proengin.com
  • AP4C kit (M910 E00 003): handheld detector with gas and sampling capability for dismounted personel
  • Prepaid maintenance and extended warranty options availbale upon initial acquisition

Specifications

  • Technology: Flame spectrometry
  • Detection range: Unlimited, CWA, TICs & TIMS, NTAs, Novichoks, binary agent, Fentanyl, virus, bacteria, spore.
  • Operating temperature: -32 °C to +50 °C -26 °F to +122 °F
  • Communication: RS485 interface
  • Data storage: Internal memory, 1 year loop recording
  • Powers supply: 24 VDC at 72W (max)
  • Humidity: 1 to 93% HR (non-condensing) IP 65
  • Shocks: MIL-STD-810-H
  • Height: 218.4 mm/ 8.6 inch
  • Length: 342 mm / 13.5 inch
  • Width: 170 mm / 6.7 inch
  • Weight: ~ 4.9 kg (10.8 lbs)
